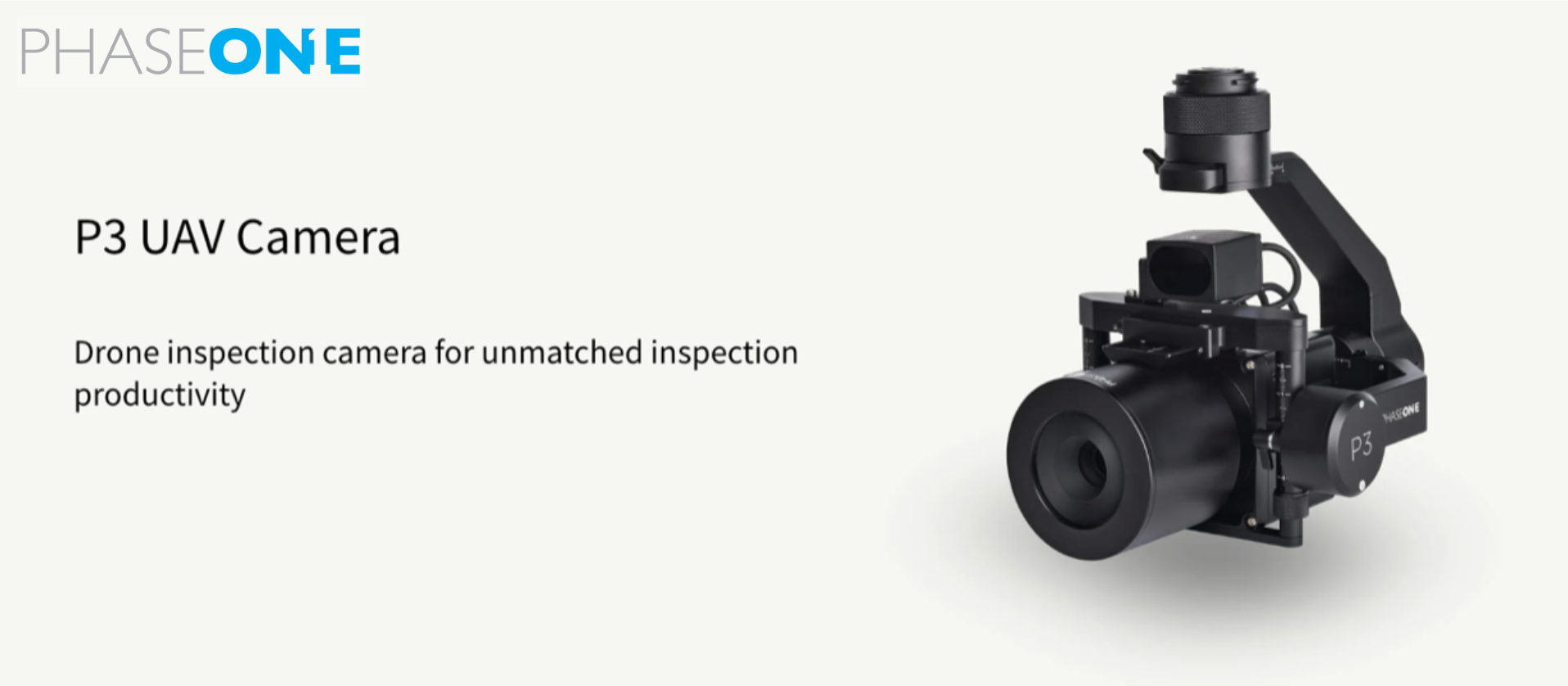

P3 UAV Camera delivering the finest details

from the furthest distance

Designed to maximize the productivity of any inspection project where time, safety, and image details are paramount for success, P3 UAV Camera provides you with the right tools to achieve unmatched performance.

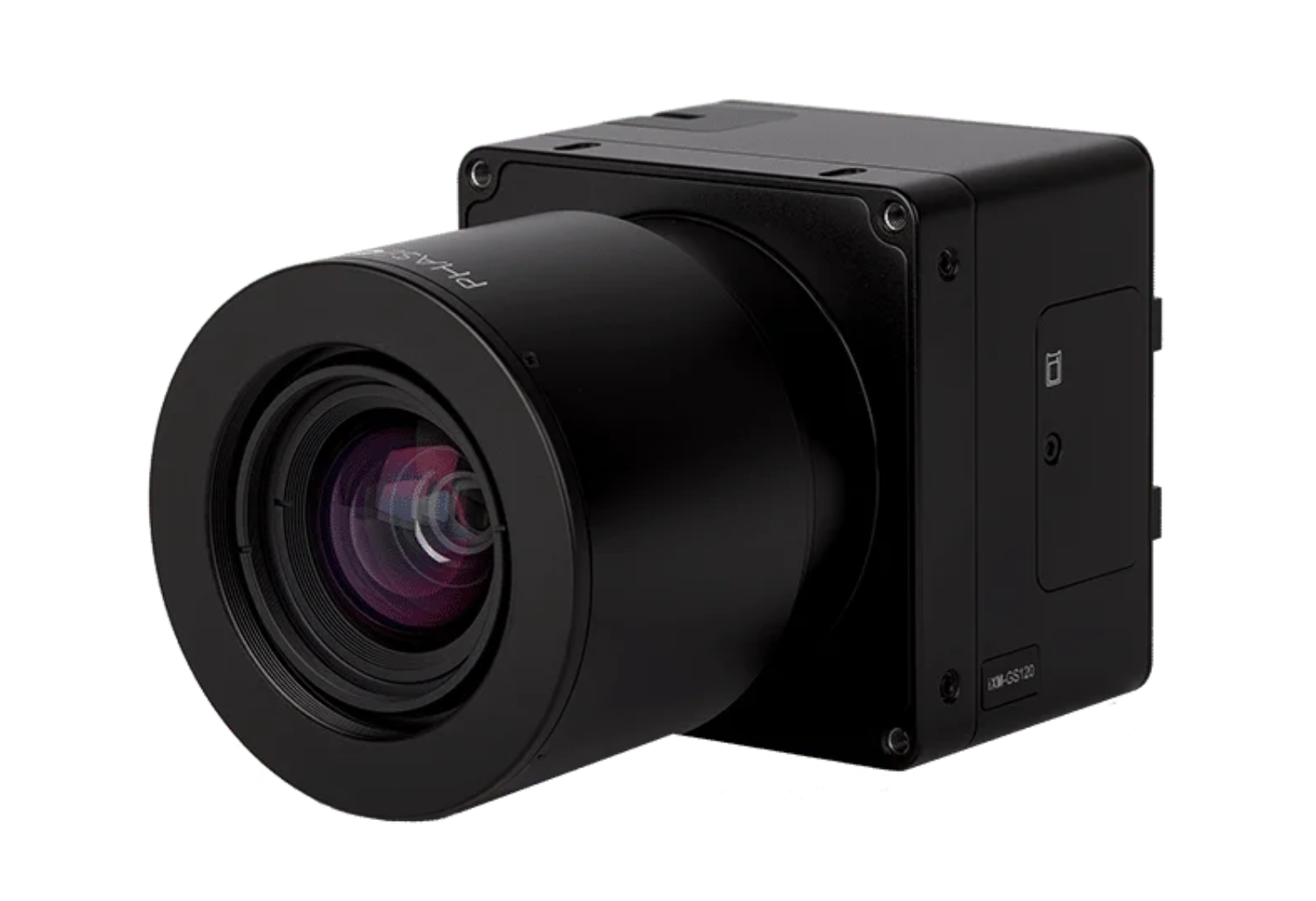

Featuring a medium format sensor 1.7 times larger than other cameras, Phase One iXM captures more details in each frame saving you tremendous mission time.

Our iXM cameras are uniquely designed for UAVs and are fast, highly responsive, robust, and easily integrate with your aerial photography drone for diverse inspection and mapping missions. iXM cameras are available with a range of RSM lenses to ensure that your Phase One P3 UAV Camera gives you the best image quality and performance.
Key Advantages
Lens Specifications
P3 Drone Integration Solutions
P3 payload Performance & Specifications
P3 payload photos and data

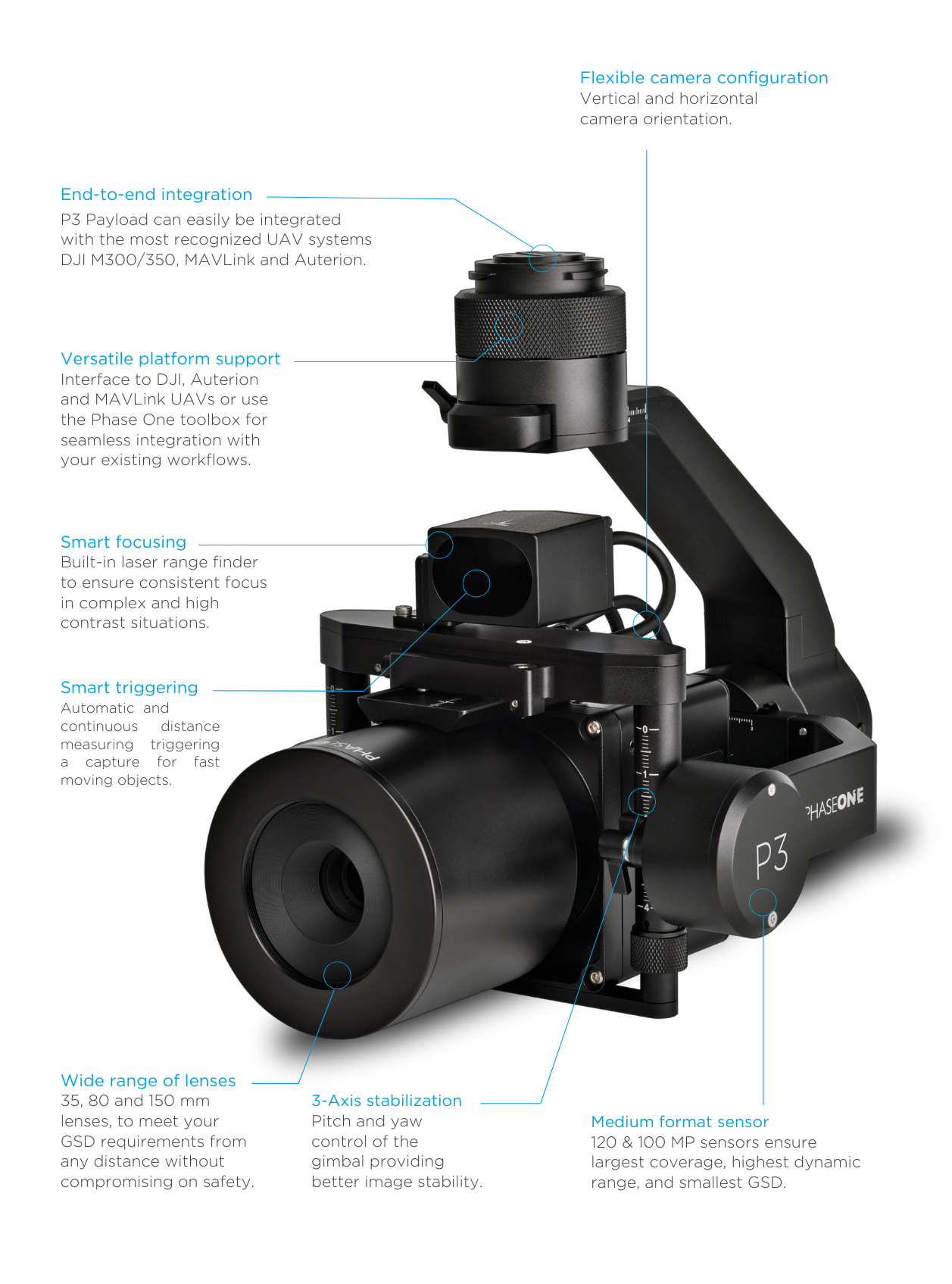

Key Advantages

Best-in-class sensor performance

Make the most of every flight by capturing more in every shot with the largest image sensor.

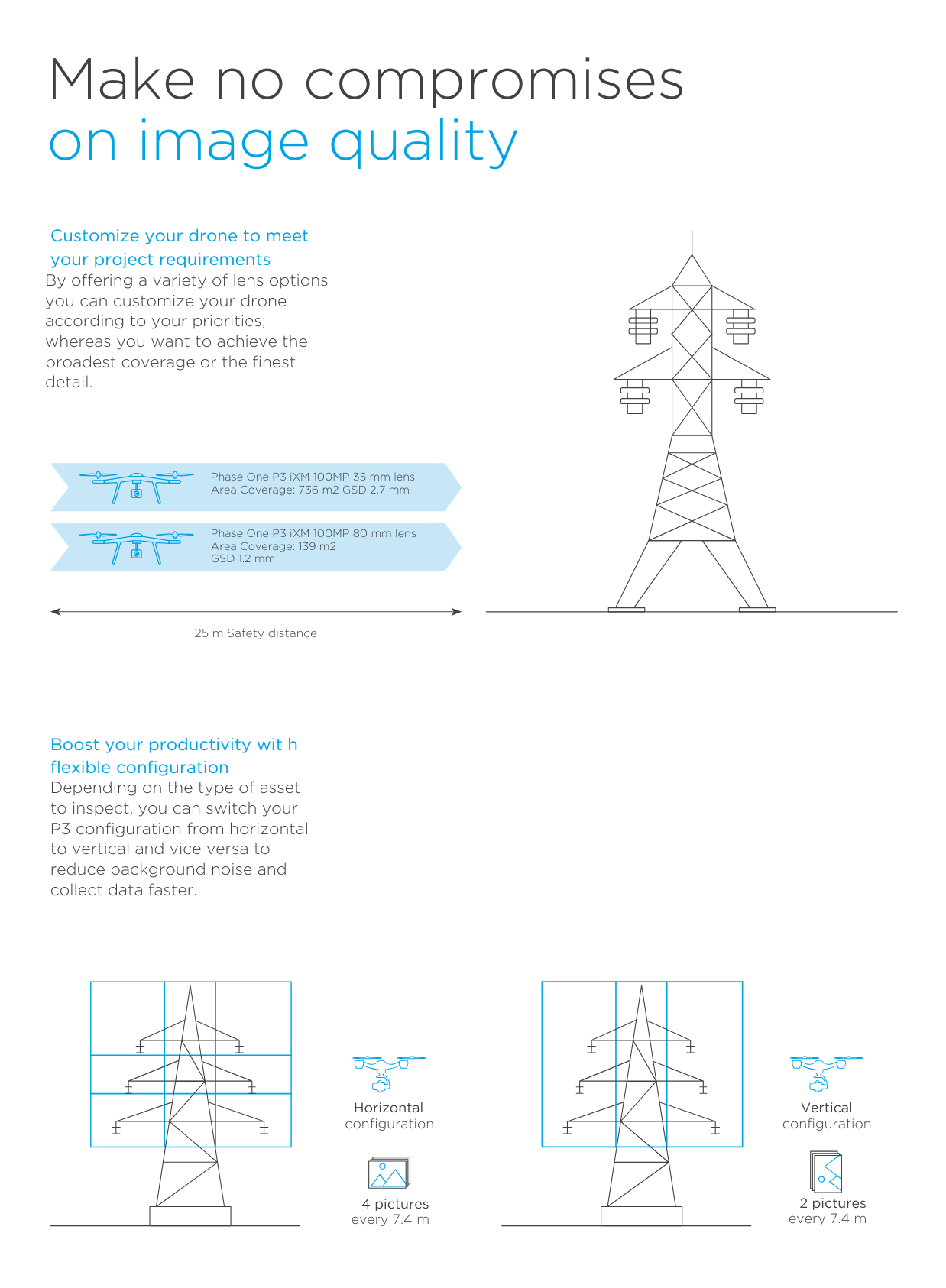

Flexible configuration for every need

Get more value out of your inspection by switching between vertical and horizontal configurations to collect data faster and reduce background noise.

More details from a distance

Get detailed data from the safest distance while covering a large area choosing from a variety of our lenses.

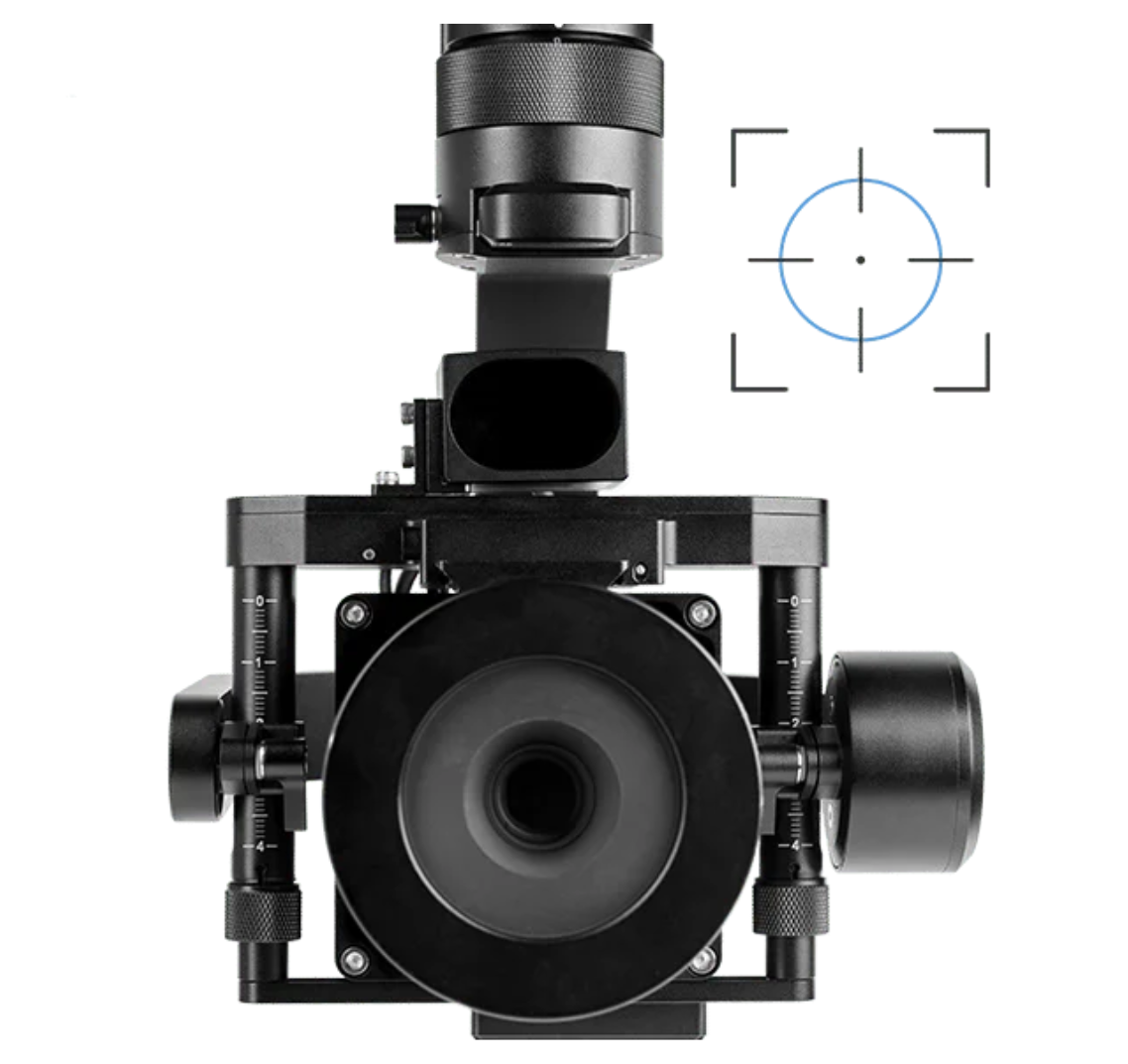

Smart capture for robust results

Make every shot count. Capture easily complex assets and moving objects with smart focusing and triggering.

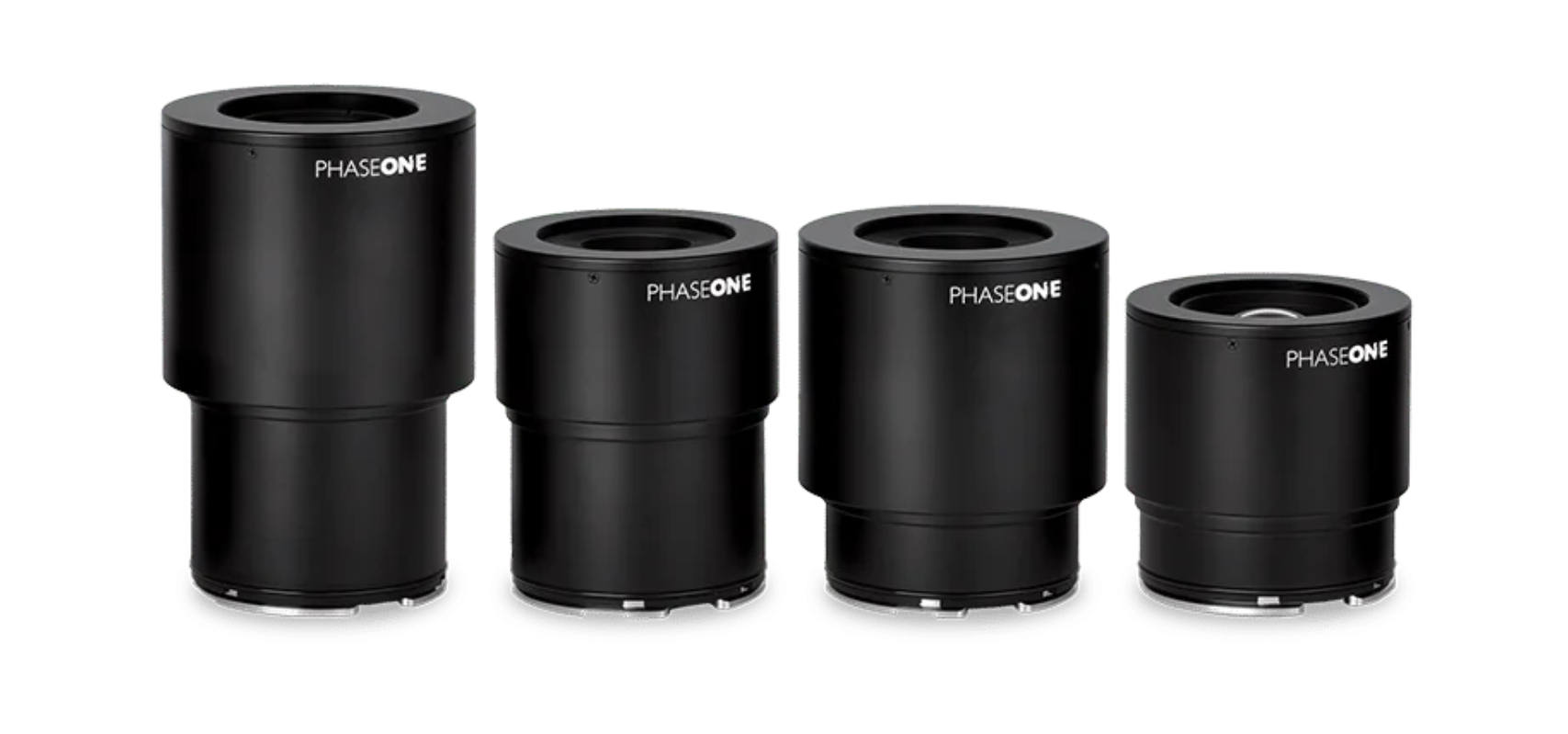

Lens Specifications

Lenses technical specifications           35 mm 80 mm 80 mm AF 150 mm AF
Lens composition 12 elements in 8 groups 8 elements in 5 groups 8 elements in 5 groups 8 elements in 7 groups
Minimum focusing range infinity 3 m to infinity 3 m to infinity 10 m to infinity
Shutter speed max (sec) 1/2500 1/2500 1/2500 1/2500
Exposure control 1/3 f–stop increments 1/3 f-stop increments 1/3 f–stop increments 1/3 f–stop increments
Aperture range f/5.6 – f/22 f/5.6 – f/22 f/5.6 – f/22 f/5.6 – f/22
Filter diameter (mm) 58 58 58 58
Angle of view-long side (°) 120 MP sensor 64.4 30.8 30.8 16.7
100 MP sensor 64.4 30.7 30.7 16.6
Angle of view-long side (°) 120 MP sensor 50.2 23.3 23.3 12.6
100 MP sensor 50.3 23.2 23.2 12.5
Entrance pupil to image plane (mm) 72 85 85 107

P3 Drone Integration Solutions

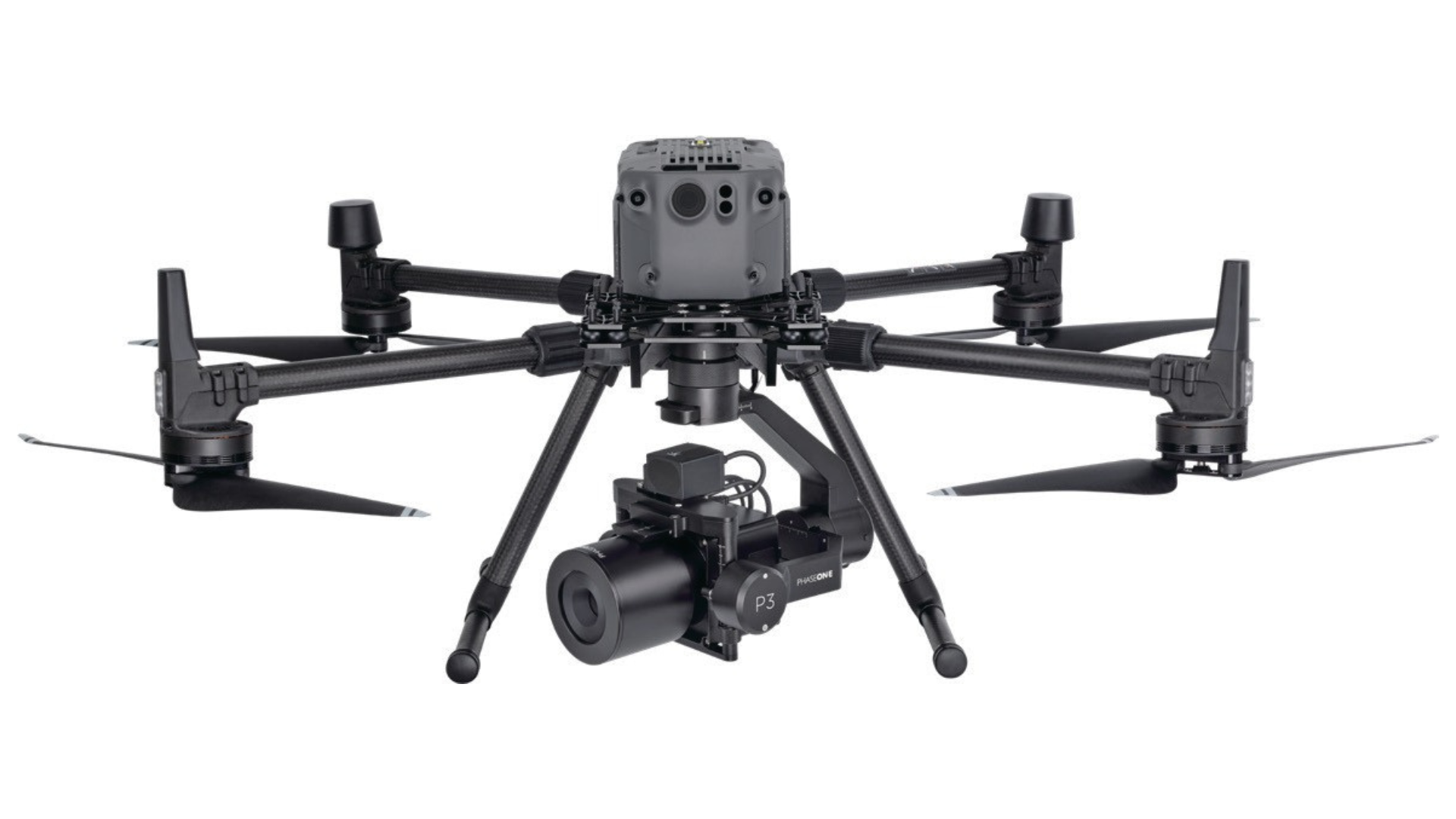

P3 UAV Camera Payload for DJI M300/M350

P3 UAV Camera Payload for DJI M300/M350 leverages the DJI ecosystem for mission planning and execution to provide a flexible solution with the highest quality imagery

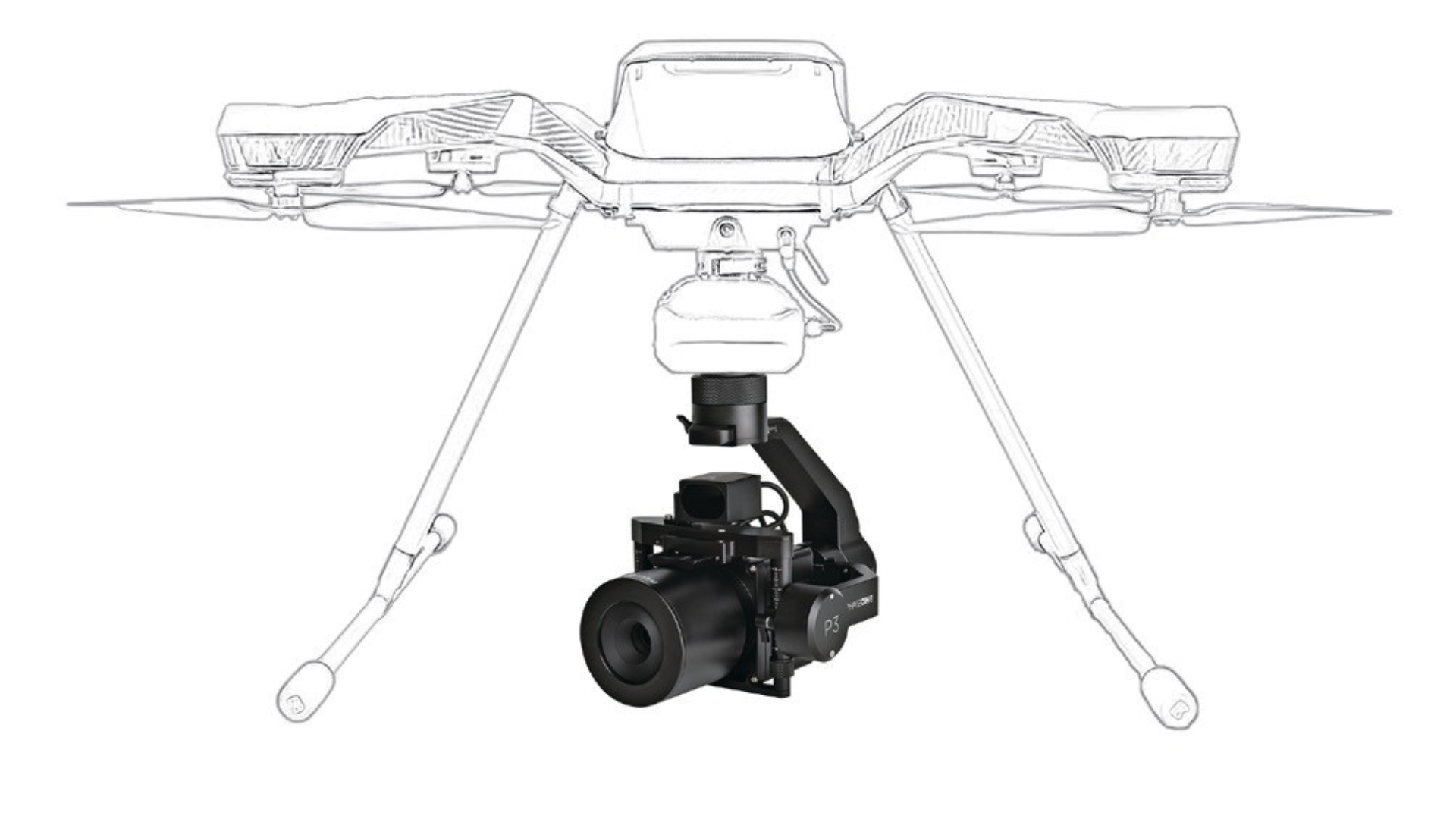

P3 UAV Camera for MAVLink

P3 UAV Camera for MAVLink integrates with MAVLink and Auterion supported drone providing a ready-for-integration solution with the highest quality imagery

DJI


M300/350


The P3 Payload for DJI M300/350 is a ready- for-flight plug and play solution, that gets you started from day one, with the tools you already have, to deliver better value to your customers.

P3 for DJI M300/350 provides:

  1. Turnkey integration with the DJI Pilot App eliminating the need to retrain your pilots.
  2. Compatible with third party software via DJI Mobile SDK Maximum utilization and uptime of your existing.
  3. M300/350 fleet by opening up new application.

MAVLink


supported drones


P3 for MAVLink supported drones is a ready-for-integration solution. It is designed to significantly reduce your time to market by fast-tracking your integration efforts. You have the freedom to customize the integration to your specific platform and application requirements.

P3 for MAVLink provides

  1. Full compatibility with your MAVLink drone enabling you to offer it as a turnkey solution for new markets.
  2. Complete documentation of the open-source software, and electrical and mechanical interface, making the integration a breeze.
  3. Your choice of MAVLink Ground Control Software through the MAVLink Camera Protocol.

P3 payload Performance & Specifications

Auto focus based on LRF input
Image sensor & camera P3 DJI P3 MAVLink
Weight kg
with 80 mm AF lens
without payload mount 		2.5 2.5
Sensor Medium format sensor
iXM-100
iXM-GS120 (electronic Global Shutter) 		Medium format sensor
iXM-100
iXM-GS120 (electronic Global Shutter)
Environmental rating IP53 (iXM only) IP53 (iXM only)
Gimbal stabalization 3 axis 3 axis
Laser range finder
(max effective range)		 Approximately 90 m Approximately 90 m
Camera control (key features) ISO, shutter speed, exposure,
AE, focus distance AF/MF,
LRF range max/min, focus peaking		 ISO, shutter speed, exposure,
AE, focus distance AF/MF,
LRF range max/min, focus peaking
Camera control
(metadata)		 EXIF ICC Profile, XMP (incl. GPS) & IPTC EXIF (incl. IMU & Custom Field),
ICC Profile, XMP (incl. GPS) & IPTC
Live view HDMI HDMI
Camera orientation Vertical and horizontal Vertical and horizontal
Smart focusing Auto focus based on LRF input
Flight planning software DJI pilot Q Ground Control & Mission Planner
Electric interface Skyport V2 HDMI, Telemetry, USB-c
Software interface Support for PSDK & MSDK Support for MAVLink Protocol v1 and v2
Hardware compatibility DJI M300/350 only MAVLink based platforms Cube Orange & PixHawk 4.0

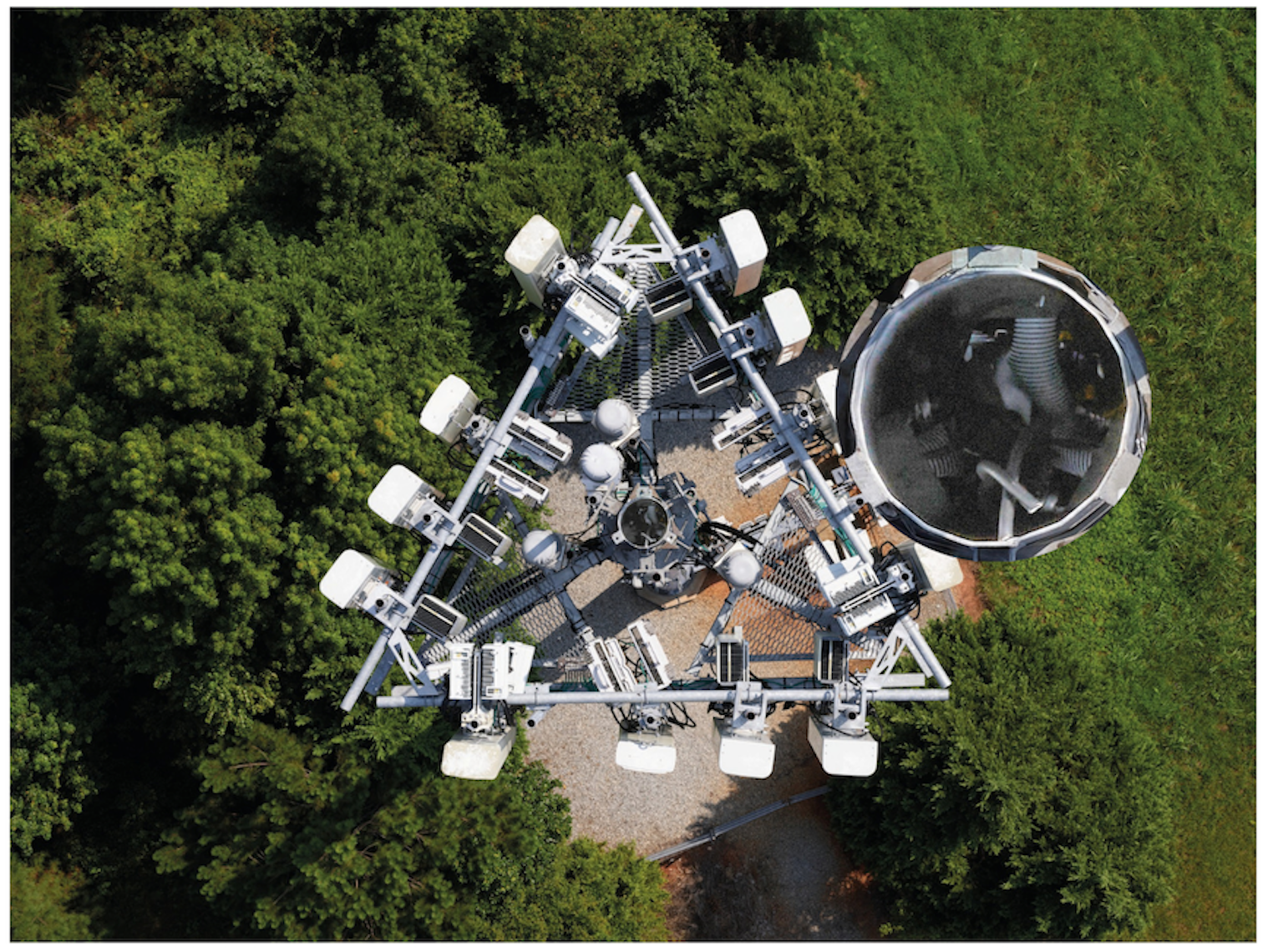

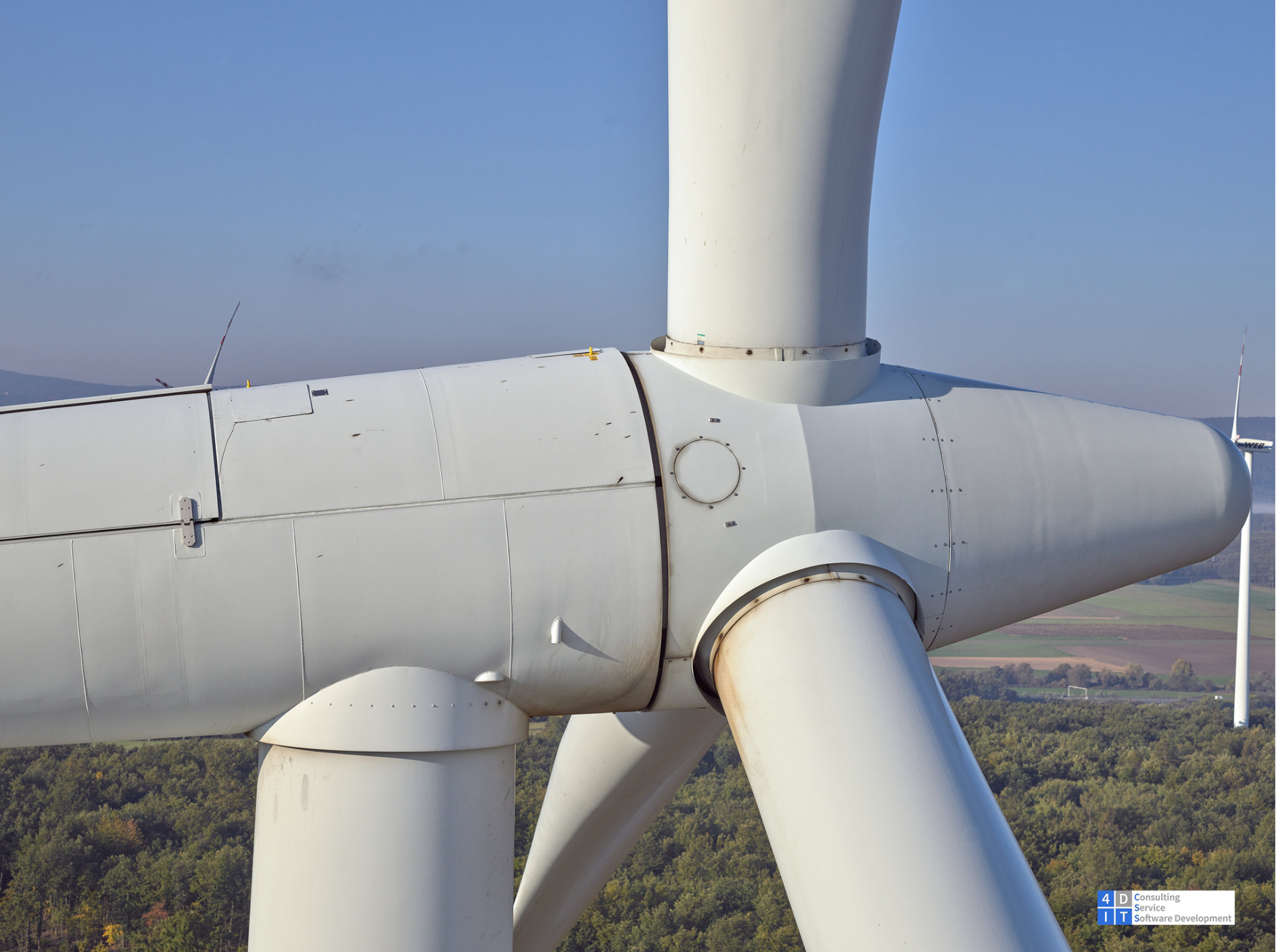

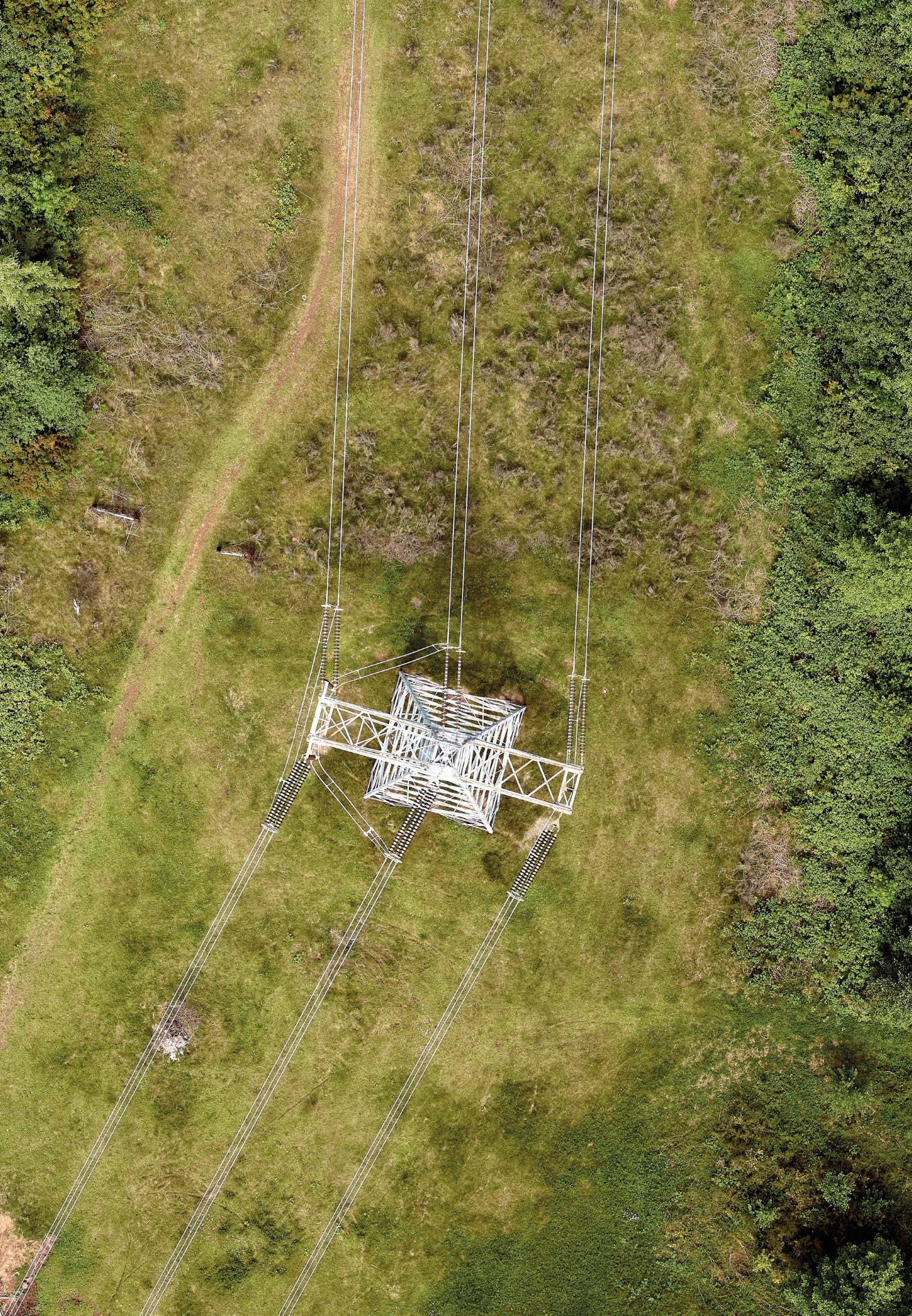

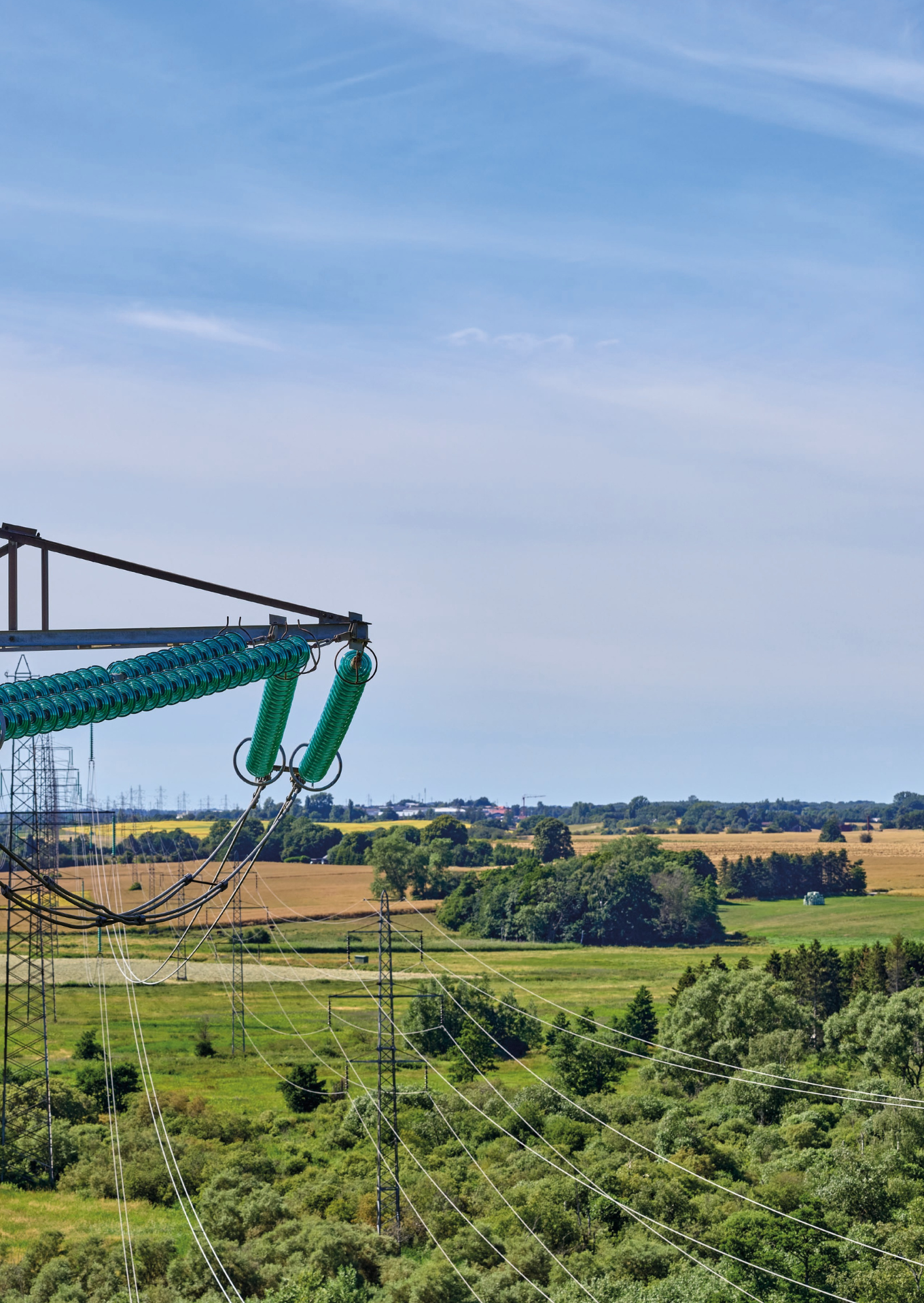

P3 payload photos and data
